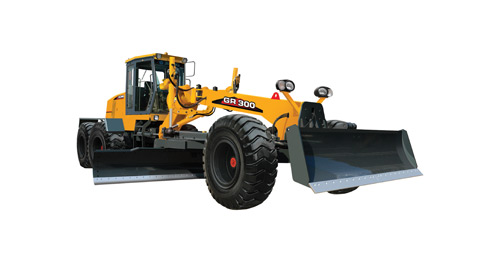

GR300 Motor Grader

Basic specification
Engine model	QSL9
Rated power/speed	224kW/2100rpm
Dimension(LxWxH)	10500×3100×3550mm
Operating weight(Standard)	26000kg
Performance specification
Travelling speed ,forward	5、8、11、19、23、40 km/h
Travelling speed ,reverse	5、11、23 km/h
Tractive force(f=0.75)	140KN
Max. gradeability	30%
Tire inflation pressure	350 kPa
Working hydraulic pressure	16 MPa
Transmission pressure	1.3～1.8MPa
Operating specification
Max. steering angle of front wheels	±50°
Max. lean angle of front wheels	±17°
Max. oscillation angle of front axle	±15°
Max. oscillation angle of balance box	15
Frame articulation angle	±27°
Min. turning radius using articulation	8.0m
Biade
Maximum lift above ground	450mm
Maximum depth of cutting	500mm
Maximum blade position angle	90°
Blade cutting angle	28°—70°
Circle reversing rotation	360°
Moldboard width X height	4920×787mm

All technical parameters are subject to change without prior notice because of technical improvements.
